1. 適用于通訊行業及醫療汽車行業各類柔性及半柔同軸線、充電槍EV線纜、 醫療線等剝皮,剝口整齊,精密不傷及導體。
2. 人機界面,操作簡單易懂,最多可剝皮9層,可存儲多達99種加工數據。
3. 旋轉式刀頭,四片旋轉刀的設計及精巧的結構更提高了剝線的穩定性與刀具工作壽命。
4. 采用伺服電機、精密級滾珠絲桿及多點位運動控制系統,性能穩定而高效。
5. 刀具采用進口鎢鋼及鈦合金涂層,銳利而又經久耐用。
6. 可滿足多層剝皮,多段剝皮、自動連續起動等特殊要求。
7. 在原有機型上進行了不斷地創新,功能及結構更加優化,性能更強大。

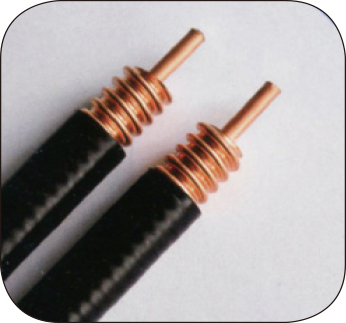

1. Suitable for different types of semi-flexible and flexible coaxial wires, charging cables, medical wires' processing in communication and medical industry. Stripping edge smooth and no harm to the conductor.
2. Human-computer interface, easy to operate and understand, Max. 9 layers of stripping and 99 sets of memory function.
3. Rotation blade head, four pieces of exquisitely designed blades improved stripping stability and blades’ lifetime.
4. Adopt servo-motor, precision ball screw and multi-point movement control system, working performance is stable and efficient.
5. Blades are made of imported tungsten steel and titanium alloy coating, sharp and durable.
6. This machine can meet multi-section stripping, stripping & twisting, automatic start in succession and other special requirements.
7. Continuous innovation on the previous models, function and structure are more optimized, performance is more powerful.

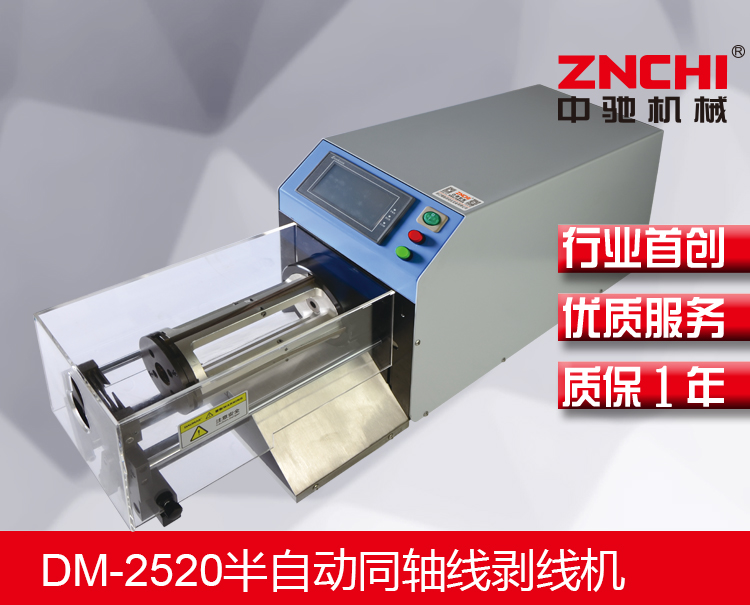

型號 加工直徑 切割深度單位 加工效率 最大剝線長度 最大剝皮層數 外型尺寸 重量 電源 功率 | DM-2520 3.0-25mm 0.01mm 300-800PCS/H(視線材而定) 200mm 9層 Layers 1000×225×400mm 50KG AC220V 50 60HZ 800W |
